Product Code:
БУП-500-1,5-Б

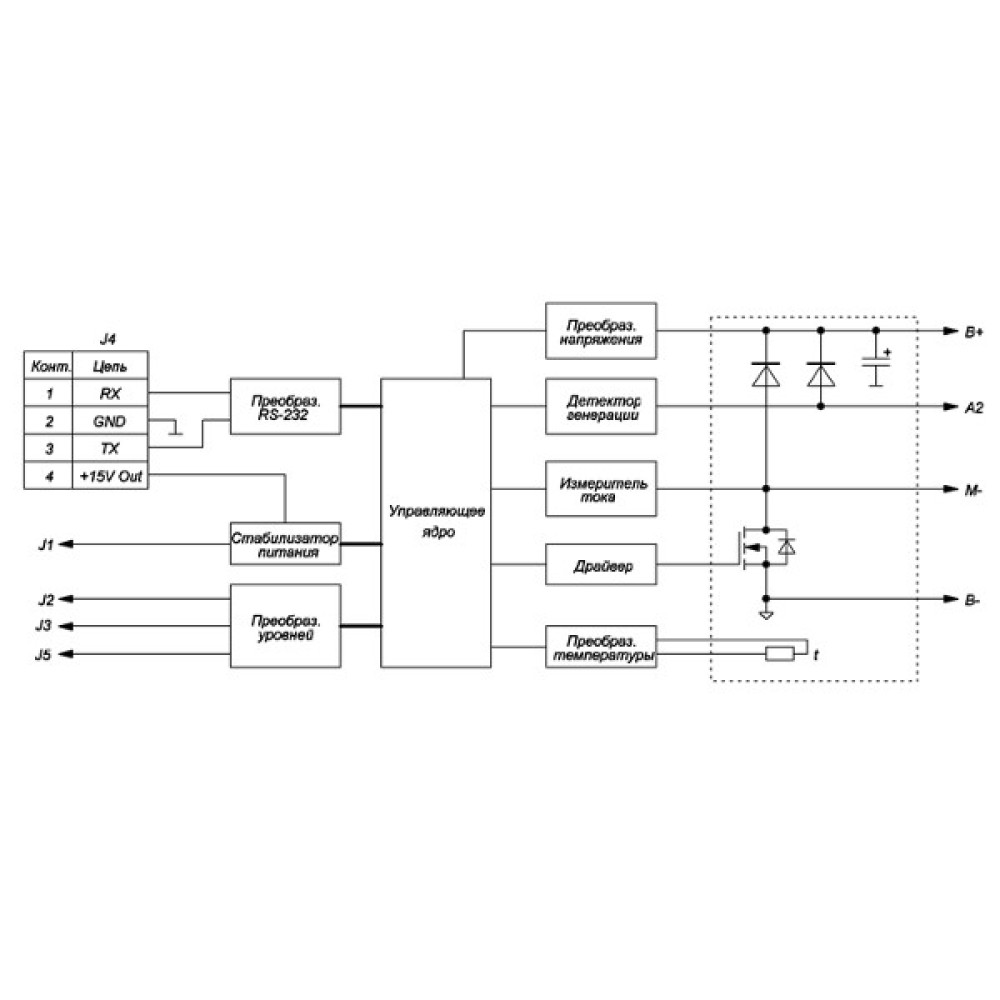

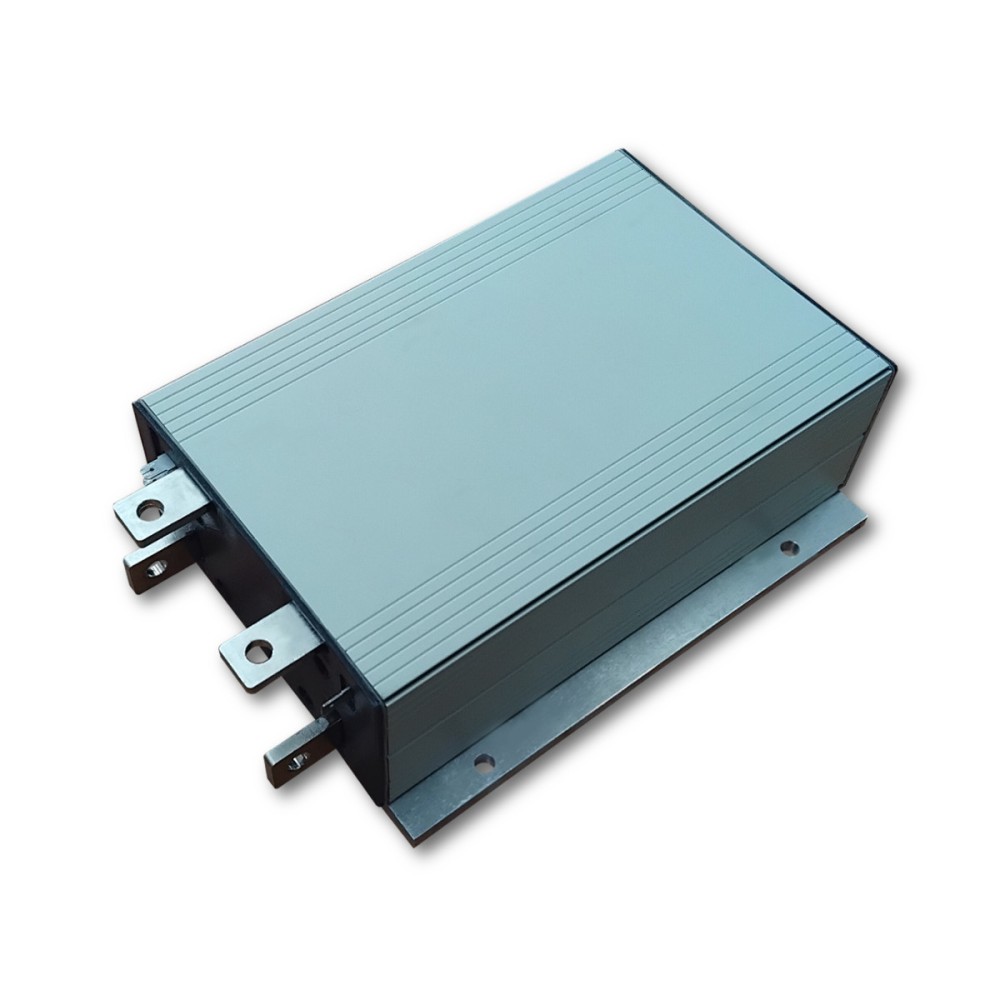

The DCU-500-1.5-B drive control unit is a collection of power MOSFET transistors with control and protection circuits.
The unit is designed to control a DC commutator motor in accordance with external control signals as part of traction drives and pumps.
The unit is designed to operate in circuits with a maximum average inverter current of up to 500 A for 1 minute and 200 A for an extended period at a constant supply voltage of 16 to 80 V.
The block's prototype is the Curtis 1209M-5501 (-6401) controllers.
