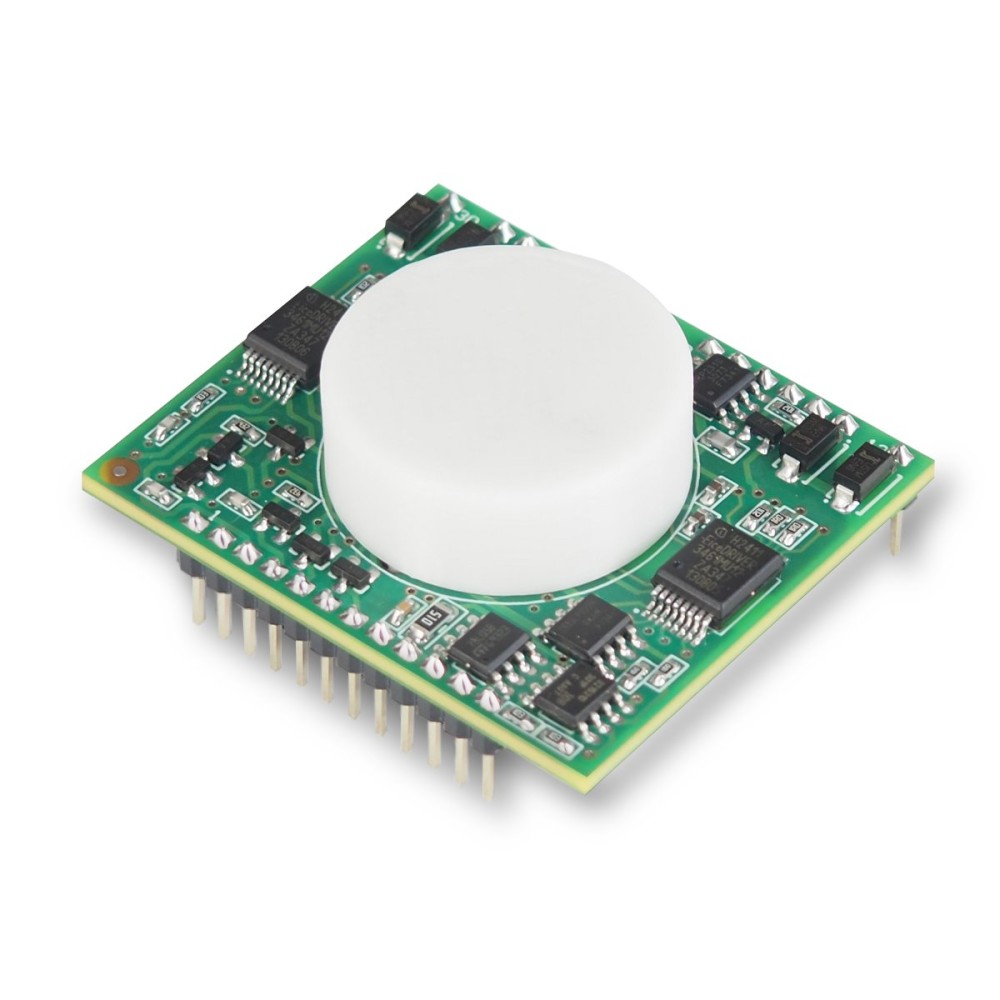

DM2150P-B

The DM2150P-B driver is a two–channel driver for high-power SiC-MOSFET transistors with field control, designed for galvanically isolated control of two high-power transistors with a maximum allowable voltage of up to 1700 V. The driver is an amplifier that generates transistor gate control signals with a frequency of up to 100 kHz. The driver contains a built-in galvanically isolated DC/DC converter that provides the necessary levels of unlocking and locking voltages at the transistor gates.

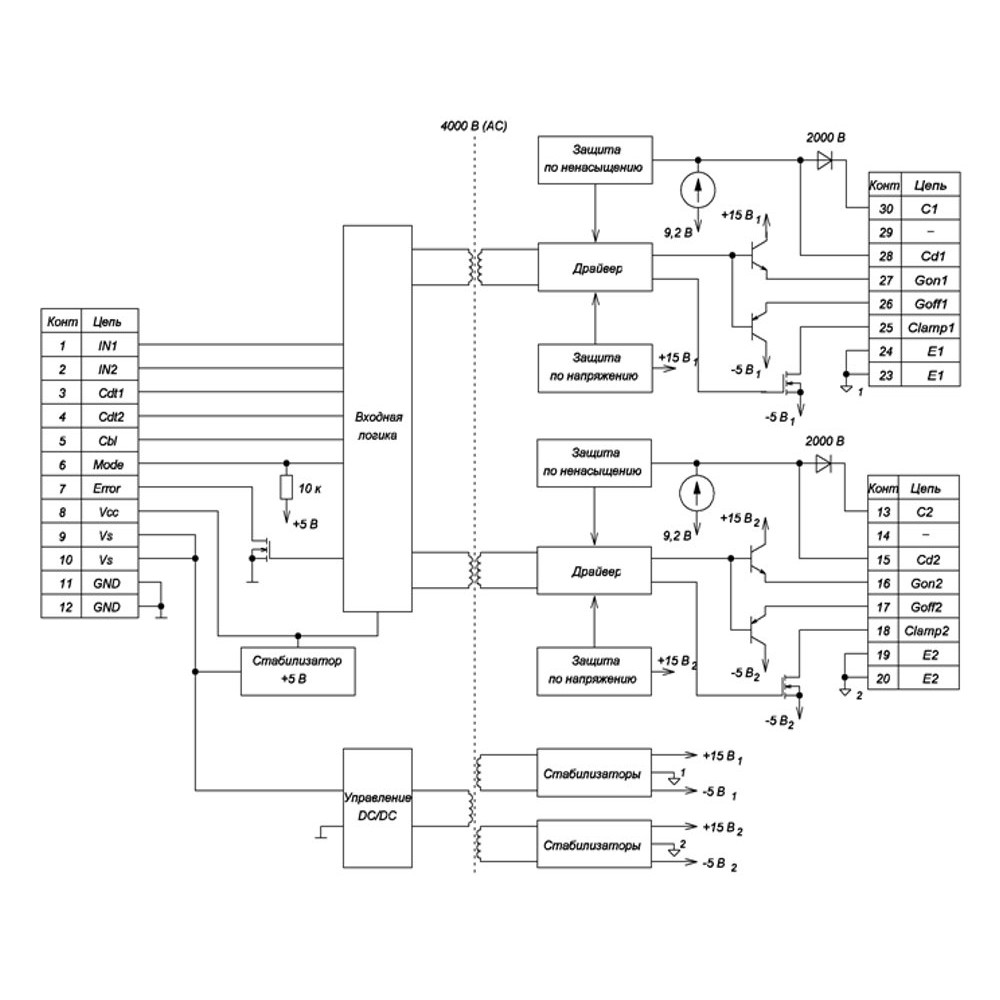

The driver provides the following control, monitoring and protection functions for the controlled transistor:

1. unlocking and locking of controlled transistors according to control signals;
2. saturation voltage monitoring on the drain of the controlled transistor, its smooth shutdown when exiting the saturation state;
3. emergency control lock with lock duration adjustment;
4. alarm about the presence of an emergency situation;
5. no blocking of simultaneous activation in independent mode;
6. blocking simultaneous activation of the upper and lower arms in dependent mode;
7. adjustable delay for switching the upper and lower arms;
8. gate bypass in the off state ("Miller Clamp");
9. power supply plus 5 V for the external control circuit;
10. monitoring of supply voltages at the output of the DC/DC converter.
